1.5″ Mechanical Seam Standing Seam Panel
The 1.5″ Mechanical Seam Standing Seam Panel is a premium architectural metal roofing solution designed for high-performance commercial and residential applications. Engineered for durability, weather resistance, and structural integrity, this profile delivers a clean modern aesthetic while providing superior long-term protection against harsh environmental conditions. With its mechanically seamed joint system and engineered clip relief design, this panel ensures exceptional wind uplift resistance and enhanced watertight performance on both low-slope and steep-slope roofing systems.
Engineered Performance & Roof Slope Requirements
The 1.5″ Mechanical Seam panel is recommended for roof slopes of 2:12 or greater, ensuring proper drainage and system performance. Under specific engineered conditions — such as enhanced underlayment systems, project-specific detailing, and clip spacing design — the profile may be suitable for roof slopes down to 1:12.
This flexibility makes it a reliable choice for both traditional pitched roofs and low-slope commercial roofing assemblies.
Unlike snap-lock roofing systems, mechanical seam panels are field-seamed using specialized seaming equipment to create a continuous locked joint. This process provides:
- Superior weather tightness
- Increased wind uplift resistance
- Improved structural rigidity
- Enhanced long-term panel stability
- Reduced risk of seam disengagement
These characteristics make the 1.5″ Mechanical Seam profile particularly suitable for large commercial roofs, exposed locations, and projects requiring engineered performance.
BROWSE COLOURS
Looking for realistic woodgrain, weather resistant high gloss, or textured steel products? With a combination of 100+ colours and prints, we have your prepainted metal needs covered.
View our complete collection of colour charts and brochures below!
PVDF (Prepainted Steel)
PVDF (Prepainted Aluminum)
SMP (Prepainted Steel)
PVDF (Prepainted Steel)
POLY (Prepainted Steel)
SMP (Prepainted Textured Steel)
Fastening System
Hidden Fastener
Panel Dimensions
Panel Type: Mechanical Standing Seam
Seam Height: 2″
Panel Coverage Width: Customizable (commonly 16″, 18″, or 20″)
Material Options: Steel or Aluminum
Gauge Options: 24ga & 26ga
- Application: Roofing (low-slope & steep-slope)
Available Gauge
24ga & 26ga
Looking for more information?
We're here to help.
- Phone: +1 (778) 552-7663
- Email: sales@directmetal.ca
- Address: 31141 Wheel Ave #401 Abbotsford, BC V2T 6H1
Or Fill out our online request form
COMING SOON
Panel Specifications
Seam Height: 1.5″ (38 mm)
Panel Coverage Width: Customizable (commonly 12″ – 18″ – 20″ – 24″)
Fastening System: Concealed floating clip system

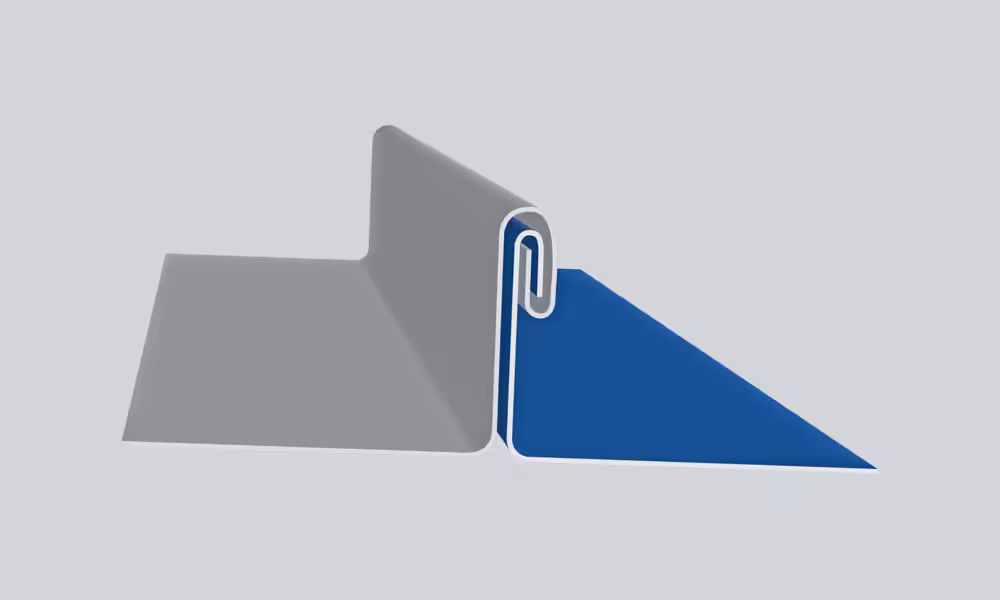

Seaming Method: Mechanical double-lock seam
Panel Length: Manufactured to project requirements
Material Thickness Options: 24 gauge steel / 26 gauge steel / aluminum options available
Material & Finish Options
The panel is available in a wide range of architectural finishes and substrates, including:
Pre-painted galvanized steel
Aluminum
Premium architectural color coatings
Matte and metallic finishes
Specialty finishes upon request
This allows architects and designers to achieve both performance goals and visual design intent.
Applications
The 1.5″ Mechanical Seam Standing Seam Panel is widely used in:
Commercial roofing systems
Institutional and educational buildings
Industrial facilities
Modern residential projects
Low-slope architectural roofs
Long panel run applications
High wind and weather-exposed environments
Weathertight Warranty Eligibility
Depending on project design, installation method, and engineering requirements, this profile may qualify for optional weathertight warranty programs. Warranty terms typically range from 5 to 35 years and are evaluated based on the specific building conditions, panel configuration, and approved detailing.
Direct Metal works closely with contractors, architects, and project consultants to support warranty-compliant system design and specification.
